Equipment model |

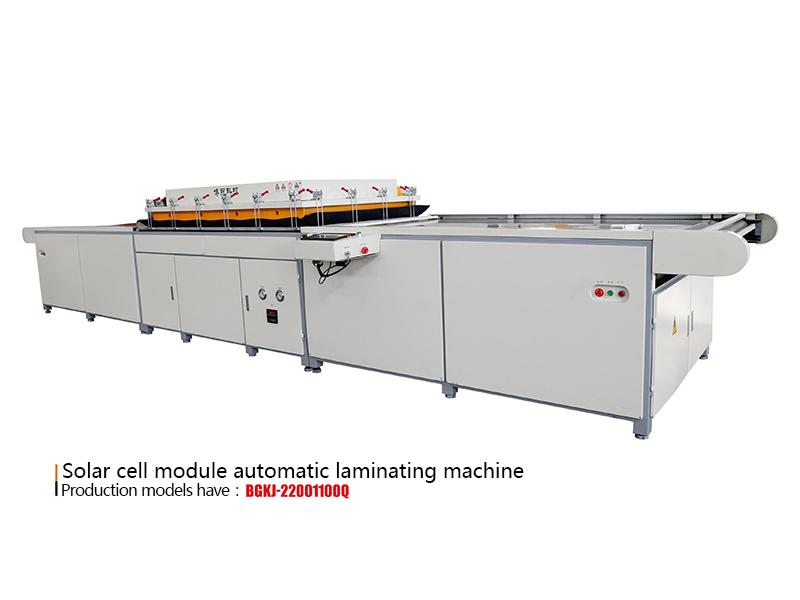

BGKJ-22001100Q |
Laminated area |
2200*1100 |
|
Dimensions |
8.6m×1.7m×1.4m |
equipment weight |
4.5T |
|
power supply |
380V 3 phase 5 lines |
Peak power consumption |
33KW |
|
Vacuum pump rate |
15L/S |
Normal working power consumption |
11KW |
|
control method |
automatic / manual |
Ultimate vacuum |
20Pa |
|
heating method |
SD320 heat transfer oil heating |
Temperature control mode |
Self - tuning intelligent PID control |
|
The highest temperature of the table |
180℃ |
Temperature uniformity |
± 1.5 ℃, multi-point temperature control |
|
Operating temperature range |
Room temperature ~ 165 ℃ |
Temperature controllable accuracy |
≤±1℃ |
